Introduction

This article presents all the information you need to know about thermoforming. Topics discussed are the following:

What is thermoforming?
Thick and thin gauge thermoforming
The thermoforming process
Types of molds
Thermoforming methods
Materials used in thermoforming
Problems and quality issues encountered during thermoforming

Chapter 1: What is Thermoforming?

Thermoforming is the process of heating thin plastic sheets to its forming temperature and stretching it over a mold which takes its shape. After cooling and setting of the molded plastic sheet, each part will be separated from its batch to form a single unit or product. The result of a thermoforming process is a finished product (or part) with a defined three-dimensional characteristic.

Thermoforming is considered a secondary molding process; the primary process being that which produces the sheet or film with a uniform cross-section (i.e. extrusion). The forming phase happens in a mold cavity when the plastic sheet is drawn by air and/or vacuum pressure. The mold cavity contains the shape of a single part. The mold tool, sometimes referred to as “tooling”, is a collection of mold cavities.

The steps in thermoforming are simple and straightforward processes, this process is suitable for high-volume manufacturing of molded products due to its fast turnaround time. Thermoplastic sheets, the starting material, are continuously fed in the heating chamber and formed into the desired shape. In some operations, the extrusion machine which produces the thermoplastic sheet is placed upstream of the thermoforming machine, thus less heat will be needed. Manufacturing set-ups are often designed to produce multiple parts with each stroke of the press using molds with multiple cavities.

Chapter 2: Thick (Heavy) Gauge and Thin Gauge Thermoforming

Depending on the manufactured part thickness, thermoforming is classified into two categories, thick gauge, and thin gauge thermoforming. Each category requires different type of machinery and technique:

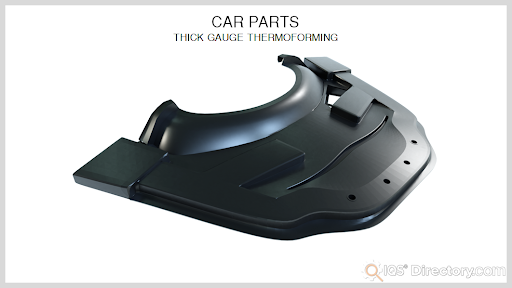

Thick gauge (or heavy-gauge) thermoforming

Thick gauge (or heavy-gauge) thermoforming produces parts from 0.125” – 0.500” thickness. Cut sheets of thermoplastics are the starting material, which is clamped and indexed in a heating equipment. This category is used to create thicker and more durable parts that have permanent end-applications.

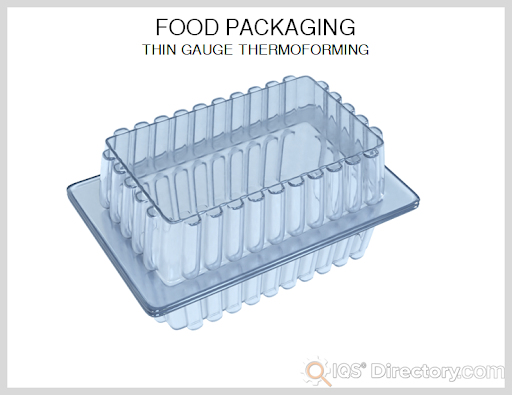

Thin gauge thermoforming

Thin gauge thermoforming produces parts with thickness less than 0.060”. Thermoplastics are either roll-fed into the equipment or may come from an upstream extrusion process. Thin gauge thermoforming, as the name suggests, produces very thin products; typical applications of this method are packaging products which are disposable and recyclable.

Chapter 3: The Thermoforming Process

This section presents the stages involved in the thermoforming process.

Heating

Plastic sheet to be molded, which has length and width greater than the finished product, is clamped into a holding device and transported into a heating equipment to raise it to the forming temperature. The sheet is heated by contact heating using panel and rods (conduction), by exposing to circulating hot air (convection), or by using infrared heaters (radiation). Such heating systems must be carefully designed in order to achieve uniform sheet temperature.

Forming temperature is arbitrary, depending on which type of thermoplastic is used, application of the finished part, and forming technique which will be employed. This is one of the most important operating parameters in thermoforming to meet certain quality standards. Take note that the true forming temperature of a sheet is its core temperature, not its surface temperature. Hence, it is important to calculate heat transfer across the sheet.

When it comes to the variation of temperature across the sheet, the 10-10-5 rule must be met. The first 10 applies to the 10 locations on sheets where the temperature must be known; this includes the four corners and centers of both sides. The next 10 refers to allowable variance of 10°F among the 10 locations. Five (5) means that the temperature on both sides of the sheet in each of the 10 locations has an allowable variance of 5°F. The 10-10-5 rule applies to heating, forming, and cooling to achieve optimal thermoforming.

Forming

Heated plastic sheets are removed from the heating equipment and transported to a temperature-controlled and pre-heated mold tool. At this stage, the plastic sheet takes the shape of the mold cavity which contains the desired form of the finished product. This stage gives the product its three-dimensional characteristics (length, width, and height).

The mold tool may be a positive or a negative tool, depending on its form:

- - Positive Tool

Positive Tool, or “male mold” is convex-shaped – the heated plastic sheet is positioned above the convex tool. The “humped surface”, or the convex surface will now give the plastic sheet its final shape. The exterior surface of a positive mold tool will give the shape of the inner surface of the part.

- - Negative Tool

Negative Tool, or “female mold”, on the other hand, is concave-shaped. The interior surface contour of a negative mold tool will give the shape of the outer surface of part.

After forming, the plastic containing the new shape solidifies by cooling using air circulation or liquid cooling systems. The tool material used significantly affects the cooling cycle, thus also affecting the quality of the parts.

Other additional shaping steps are involved, especially in thick gauge thermoforming, such as drilling, cutting, or finishing.

- - Trimming

The sheet containing the formed parts goes through a trim station, wherein a die, abrasive wheel, or circular saw cuts the parts in order to be separated from other parts from the sheet web. Remaining plastics after the trim process may be recycled similar to the starting material and reprocessed to form other parts.

Chapter 4: Types of Molds

The mold cavity to be used in the forming step is carefully designed by the manufacturer to create the required profile of the finished product, depending on the customer needs or end-user application. Initial stages in the development of a mold tool involves detailed drawings in the CAD software and CNC program to realize the desired patterns. Some of the materials used to create the mold tool are the following:

Wood

An inexpensive type of tooling material, wood can be shaped fairly easily hence the manufacturer can readily make complex designs or make changes on the details of the part. However, it poses many disadvantages: uneven and lengthy cooling (since wood is an insulator), has moisture which can cause voids and it can transfer wood grains to the part. Tooling made from wood is commonly used as prototypes to create commercial mold.

Fiberglass

Like tooling from wood, fiberglass is also an economical permanent mold tool if a manufacturer only produces lower volume parts. However, the cooling cycle is two to three times longer than a temperature-controlled mold.

Aluminum

Aluminum provides an excellent temperature control which leads to shorter cycle times and excellent quality parts:

Cast Aluminum

- - Cast Aluminum tools are derived from the wood prototype.

Fabricated Aluminum

- - Fabricated Aluminum tools are made from a single or multiple aluminum blocks that are honed and cut to produce the mold. The fabricated tool is costly but more accurate in terms of dimensions and the manufacturer can make more complex designs.

Chapter 5: Thermoforming Methods

The following are the common forming methods.

Vacuum forming

A vacuum is generated underneath the sheet to draw the plastic sheet against the mold cavity until it takes its desired shape. In some production set-up, the sheet is heated before it is stretched (called “Drape Forming”). Vacuum forming is the simplest of all thermoforming methods. However, part thickness distribution is difficult to control. Vacuum pressure should be uniform and sufficient throughout the mold.

Pressure forming

Similar to the vacuum forming method, an air pressure is utilized together with the vacuum applied under the cavity to push the plastic sheet. The added air pressure creates greater detail (e.g. textured surfaces, undercuts and sharp corners) on the finished product, which is not easily created by vacuum forming, making this method suitable for products with complex designs.

Mechanical Forming

The thermoplastic sheet is pushed into or around the mold cavity, by mechanical force using a combination of a positive and negative tool. This method is suitable if the part requires surface detailing on both sides of the part; also offers a better dimensional and part thickness control compared to vacuum and pressure forming. However, this is costly since two mold halves are operated and maintained.

Twin Sheet Forming

Twin sheet forming involves two plastic sheets simultaneously heated and formed using two mold tools for each halves of the parts. Mold tools are then precisely pressed together on the edges to connect the two halves. This method is used in producing double-walled three-dimensional parts and hollow tubes such as air ducts, pipes, and tanks.

Chapter 6: Materials Used in Thermoforming

Thermoplastics are the raw material of the thermoforming process. Thermoplastics are a broad class of polymers which can be heated at a certain elevated temperature and re-casted reversibly, without altering its chemical properties and an associated phase change. It can survive multiple cycles of heating and cooling. Given this nature, thermoplastics can be reprocessed, and are recyclable materials. Only thermoplastics can be thermoformed. Thermosetting and elastomeric plastics, in contrast, cannot be reshaped once the polymeric chains have been cross-linked.

Forming temperature is any point located above the glass transition temperature and below its melting temperature. When the temperature of a thermoplastic is increased gradually, the intermolecular forces in the polymeric chains are also weakened gradually. Until it reaches the glass transition temperature. Above the glass transition temperature, the once rigid and brittle solid is turned into a soft and pliable rubber-like material. The reverse of this transition is a supercooling of the thermoplastic called vitrification.

Thermoplastics are grouped into amorphous and semi-crystalline.

Amorphous Thermoplastics

These materials have a random molecular structure and wide range of softening temperature. Most of the amorphous thermoplastics are transparent. Advantages of amorphous thermoplastics are good dimensional stability, impact resistance, bonding well with adhesives, and being easier to thermoform than semi-crystalline thermoplastics. However, they have poor fatigue resistance and are prone to stress cracking. Some of the amorphous thermoplastics are polycarbonate, acrylic and high impact polystyrene.

Semi-crystalline Thermoplastics

These exhibit an organized lattice at a temperature lower than its melting point. They have a sharp melting point. This type is known for its excellent wear and bearing resistance, making it ideal for structural applications and durable plastic parts. This type is also known for its better chemical resistance and insulation properties. Disadvantages of this type are difficult thermoform and/or bond with other formed parts, and only an average impact resistance. Examples of semi-crystalline thermoplastics are polyethylene, propylene, and nylon.

There are many thermoplastics suitable for thermoforming. The below presents the most notable:

Acrylonitrile Butadiene Styrene (ABS)

ABS is a combination of acrylonitrile, butadiene, and styrene polymers. It is an opaque polymer, light weight, and sturdy material. ABS is resistant to a wide range of temperatures (-40F to 1760F), allowing this material to be molded at high or low temperatures. ABS is safe under normal handling conditions.

- - Sports equipment like golf club heads and protective head gears, and toys (i.e. Lego)
  - Musical instruments
  - Automobile parts
  - Electronic devices, gadgets
  - Piping systems

High Impact Polystyrene (HIPS)

HIPS is a modified homopolymer polystyrene combined with 5-10% rubber or butadiene copolymer. This modification results in increased toughness and impact strength, as polystyrene alone can be brittle. HIPS is easily and is cost-effective. Also, the finishing of HIPS also can be easily customized aesthetically making it a good packaging material.

- - Packaging materials like bottles, boxes, and clamshell containers.
  - Food packaging and disposable tableware

High Density Polyethylene (HDPE)

HDPE is a petroleum-based polymer notable for its rigidity and high strength-to-density ratio. HDPE has excellent resistance to chemicals, moisture, and most solvents. Hence, it is ideal to use this material for packaging products with short shelf-life and industrial and household chemicals.

- - Industrial and household chemicals packaging such as detergents, bleach, shampoo, and cosmetics
  - Food packaging for short shelf life such as milk, juices, etc.
  - Containers intended for prolonged reuse

Polyvinyl Chloride (PVC)

PVC is a strong and rigid plastic created from suspension polymerization. PVC is the preferred material in the construction industry due to its excellent resistance to grease, fire, impact, and extreme environmental conditions. PVC is also a good electrical insulator. Modifiers alter the physical and chemical properties of this material. Plasticizers are added to PVC before molding to make it more pliable. Chlorination of PVC involves addition of chlorine atoms which are added to the polymer backbone to increase its resistance to chemical stability and insulation properties.

- - Construction materials and piping systems
  - Cables, wires, and electrical conduits
  - Signage
  - Clothing and fashion accessories
  - Chemical delivery systems
  - Hot and cold delivery systems

Polyethylene Terephthalate (PET)

PET is a colorless and flexible plastic; it does not break or fracture. PET is chemically stable and has low gas permeability, especially to carbon dioxide and oxygen. Due to its lightweight, this material is efficient to transport. PET is one of the most recycled plastics which is also transparent to microwave radiation. After forming PET, drying must be done to increase its resistance.

- - Carbonated soft drinks and mineral water bottles
  - Synthetic fibers
  - Glass replacements in some application.

Polycarbonate (PC)

PC is tough, has high impact strength, abrasion resistant, and dimensionally stable. It also has good electrical insulation properties. However, it has low fatigue endurance. PC has a good chemical resistance except from alkalis, aromatics, and hydrocarbons. PCs start to degrade from exposure over 600C. PCs are highly transparent plastics. It can transmit 90% of light as good as glass and can be customized using different shades. It also offers excellent optical properties.

- - Appliances
  - Automotive parts
  - Construction materials
  - Sunglasses, eye lenses, protective glasses
  - Electronic devices and gadgets

Chapter 7: Problems and Quality Issues Encountered During Thermoforming

Just like other molding techniques, thermoforming does not guarantee a defect-free process. The key to successful thermoforming is proper tool management and design. Uniform temperature on all materials and tooling must be achieved. Cleanliness of all tooling (i.e. free from moisture and plastic build-up) must also be maintained to prevent contamination-related defects.

Parameters that need to be optimized and controlled in every thermoforming process are the following:

- Forming temperature
- Mold tool temperature
- Vacuum and/or air pressure
- Liquid or air coolant flow rate and temperature

Below you can see common problems encountered in the formed parts and how to correct some of the potential causes.

Issue	Definition	Potential Causes	Corrective Action
Blisters or Bubble Formation	Voids on the inner plastic layer.	Absorbed moisture is trapped in the plastics’ inner layer, which results in expansion during forming. Plastic sheet temperature is too high. (Modifiers or stabilizers might be boiling). Temperature in the plastic sheet is not uniform.	Plastic sheets must be dried at an extended period at high temperature below the melting temperature. Lower the forming temperature. Ensure uniform heating of plastic sheets.
Webbing	Accumulated plastic material on the mold cavity. Might affect aesthetic aspects of the formed part.	Plastic sheet temperature is too high. This may cause premature melting, causing plastic to stick around the cavity. Mold parts are too close together. Insufficient vacuum.	Lower the forming temperature. Re-design the mold tool. Check vacuum functionality and for leaks. Consider increasing vacuum holes.
Part Thickness Inconsistency	Overall thickness of the formed part is not uniform. This is primarily caused by uneven distribution of the plastic sheet. In the design of the part itself, thickness is difficult to control at the edges.	Vacuum pressure is not uniform in the mold cavity (or multiple cavities within the tool). In mechanical thermoforming, force around the positive mold is unbalanced. In a positive mold tool, the sheet solidifies quickly before reaching the walls of the tub. This results in thicker bases but thinner walls.	Check for inadequate and/or improper vacuum venting. Check positive mold balancing. Pre-stretch the sheet before drawing it to the convex mold tool.
Chill Marks	White or opaque wavy marks on the formed part.	Mold tool temperature is too low causing the plastic sheet to freeze onto the mold when in contact.	Adjust mold tool temperature.
Warpage	Distorted, deformed overall shape of the formed part.	Parts are cooled unevenly, causing uneven shrinkage. Mold tool temperature is not uniform.	Check the parts cooling system. Ensure to maintain consistent mold tool temperature.
Dimensional Inconsistencies	Part produced not conforming to the required dimensions	Inadequate vacuum or air pressure applied. Improper forming method used for a specific application or material.	Check the vacuum or air pressure system. Consider other forming techniques.

Note:

1. 1. When adjusting the forming temperature, ensure that it is still between the forming and the melting
    temperatures.
  2. Part thickness distribution may be improved through pre-forming of the plastic sheet before it is drawn to the mold cavity.

Conclusion:

- Thermoforming is the process of heating thermoplastics to their forming temperature and drawing them over a mold cavity wherein it takes on three-dimensional characteristics. Thermoforming has a wide range of applications.
- Thermoforming is grouped into two categories depending on the sheet thickness of the formed part: thick gauge thermoforming (0.125” – 0.500”) and thin gauge thermoforming (less than 0.060”).
- The first step in the thermoforming process is heating of a plastic sheet to its forming temperature. The forming temperature is arbitrary to most manufacturers.
- Forming stages gives the three-dimensional characteristics (length, width, and height) to the once flat sheet. Forming methods may be vacuum forming, pressure forming, mechanical forming and twin sheet forming. Afterwards, formed parts are trimmed from the sheet web.
- Thermoplastics in the form of sheets are the starting material of the thermoforming process. These plastics can survive cycles of heating and cooling, allowing them to be recycled. Thermoplastics may be amorphous and semi-crystalline.
- Forming temperature is the temperature above the glass transition and below the melting temperature.
- The mold may be a positive or negative tool, and its material significantly affects the heat transfer across the sheet.
- Parameters to be optimized and controlled are forming temperature, mold tool temperature, vacuum and/or air pressure, and liquid and/or air coolant temperature.
- Proper tool management and temperature control is the key to successful thermoforming.
